Document and document tree
Document display and navigation
The documents in a sign application file are displayed in the document tree on the left.
The document selected in the document tree is the document you are working on and will open in the middle pane or in the document area.
All commands in the Edit, Graphometric Signature or Digital Signature tabs will affect the selected document.
The essential sections for navigating the document are:
Document navigation tree
The panel displayed on the left side of sign application is the Document Navigation Tree and allows selection of the current document. Its structure varies according to the type of dossier chosen.
The simple dossier structure has a single level.

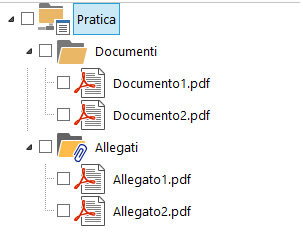

The dossier with attachments has three levels.

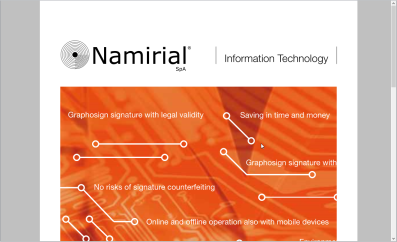

Document area

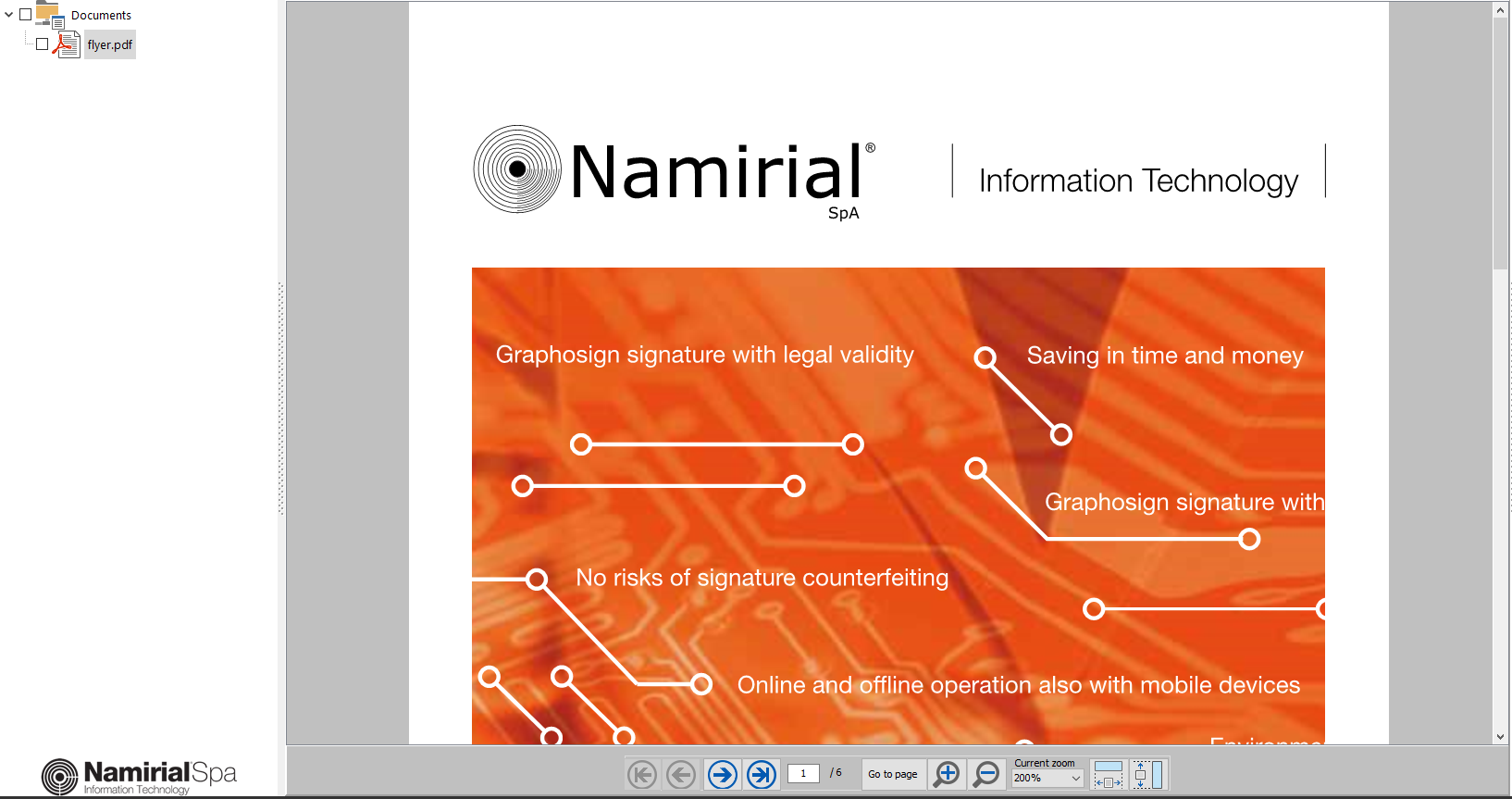

In the central section, the contents of the PDF document are shown. You can interact with the document in the document area.
The document’s navigation bar is below the document area.
Document navigation bar
The navigation bar allows you to move between the different pages of the document, increase or decrease the zoom of the page and other centering functions.
| Pulsante | Descrizione | |
|---|---|---|
 |
First page | View the first page of the selected document |
 |
Previous page | Display the previous of the selected document |
 |
Next page | Display the next page of the selected document |
 |
Last page | Display the last page of the selected document |
 |
Go to page | Go directly to the page indicated in the box |
 |
Increase zoom | Zoom in on the current page |
 |
Decrease zoom | Zoom out of the current page |
 |
Set zoom level | Summary box indicating the current zoom. The following values are provided: 10,25,50,75,100,125,150,200,400,800,1600,3200,6400 |
 |
Adapt zoom to width | Adjust the document width to the maximum width available in the document display area |
 |
Adapt zoom to height | Adjust the document height to the maximum height available in the document display area |
