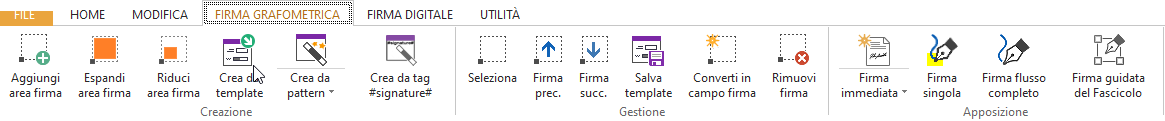

Graphometric signature tab

In this tab contains all operations for graphometric signatures. You can create signature areas or signature fields, apply templates and start the signature process.

Creation

Feature	Description
	Draw an orange color area around the cursor. The area will be added anywhere in the document when you click with the mouse. It represents a signature field where a graphometric (hand drawn) signature can be added. You can continue to attach signature fields throughout the document and browse between pages using the mouse scroll wheel. To stop adding signature areas, click on the "Select" button or press the "Esc" key on your keyboard.
	Gradually increases the size of the area drawn around the cursor.
	Gradually decreases the size of the area drawn around the cursor.
	Load from file, with fct extension, a previously saved signature template. Delete the existing signature areas and load those saved in the template. If there are also signature fields in the document, the signature areas of the template are queued to the existing fields
	Allows you to create signature areas in the current document indicated by search patterns specified in the options. Search patterns are text strings that represent keywords to search for within the document. Each time text is found that starts with or contains the search pattern a signature area is created around the text.
	Create a signature area around the word #signature# according to the specifications shown in the "Pattern Configuration" section

Management

Feature	Description
	Select a signature area or signature field in the document.
	Displays the previous signature field if it exists
	Displays the next signature field if it exists
	Opens a dialog that allows the user to choose in which file, with fct extension, to save the current signature template. The file will contain all signature areas located within the document.
	Transforms the selected signature area into a signature field.
	Remove the selected area/signature field

Signing

Feature	Description
	Creates a signature area in the position indicated by the cursor and at the mouse click executes the graphometric signature procedure for the created signature area. With the menu option "Sign on all pages" the signature can also be applied on all pages of the document in the same position as the first signature.
	Allows you to apply a graphometric signature with the mouse click, in the area or signature field indicated by the cursor.
	Starts the graphometric signature process for all fields/signature areas in the current document.
	Allows the signing of all documents in the dossier and the ability to select the signature fields for each document, in case of multiple signature devices it is also possible to select which device to use for each signature.
